Products

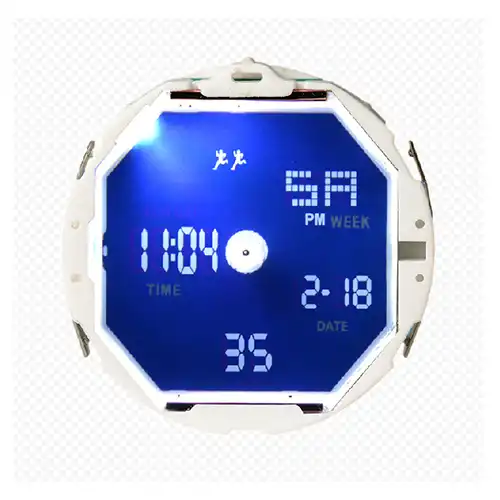

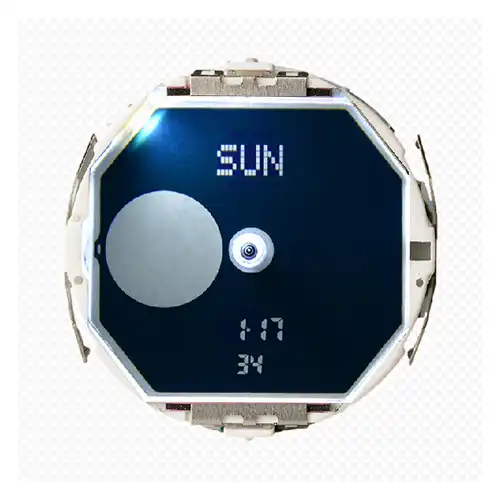

LCD Drilling LED Light-emitting Needle Movement
You can rest assured to buy customized LCD Drilling LED Light-emitting Needle Movement from us. We provide LCD electronic watch movement with stable IC, which has anti-static, low power consumption, low current, crisp sound, high bright backlight, wide viewing angle, clear font, and long life. We are dedicated to LCD electronic watch movement manufacturing for many years, and most of our products cover Hong Kong, Japan, USA, Europe, South America, Southeast Asia, etc. We are looking forward to be your long-term partner in China.
Send Inquiry
Product Description
You can rest assured to buy customized LCD Drilling LED Light-emitting Needle Movement from us. To supply quality assured products, at competitive prices, from knowledgeable technical experts, effectively, efficiently and with the reliability in the market.
LCD electronic watch movement parameters (specifications)
Size: θ35.0
Function: LCD display
Shape: Round
Product Description: Function Introduction 10-digit timekeeping function, displaying hours, minutes, seconds, day, month and week. Ringing alarm and whole hour chime 12/24 hour system selection 1/100 stopwatch
Function: LCD display
Shape: Round
Product Description: Function Introduction 10-digit timekeeping function, displaying hours, minutes, seconds, day, month and week. Ringing alarm and whole hour chime 12/24 hour system selection 1/100 stopwatch
LCD electronic watch movement product quality standards
Movement size: 35.0mm
Thickness (with buzzer): 8.55mm
Working temperature: -10℃~+60℃
Working voltage: 3.0V
Accuracy: ±60 seconds / month
Battery type and capacity: CR2016 (capacity 90m Ah)
Static average current: ≤1.82u A (static maximum current: 3.5 u A)
Loud average current: ≤1.64m A (loud maximum current: 6.5m A)
EL light-emitting average current: ≤ 8.62m A (EL light-emitting maximum current: 10m A)
Battery Service life (85%): ≥ 24 months (Japanese electricity)
(Each press light 4 times, each light 3 seconds, a total of 12 seconds of light; daily alarm 60 seconds)
Thickness (with buzzer): 8.55mm
Working temperature: -10℃~+60℃
Working voltage: 3.0V
Accuracy: ±60 seconds / month
Battery type and capacity: CR2016 (capacity 90m Ah)
Static average current: ≤1.82u A (static maximum current: 3.5 u A)
Loud average current: ≤1.64m A (loud maximum current: 6.5m A)
EL light-emitting average current: ≤ 8.62m A (EL light-emitting maximum current: 10m A)
Battery Service life (85%): ≥ 24 months (Japanese electricity)
(Each press light 4 times, each light 3 seconds, a total of 12 seconds of light; daily alarm 60 seconds)
FAQ
Q1: Are you a factory?
A1: Yes
Q2: How long do your movements last?
A2: More than two years
Q3: Can you do custom movements?
A3: Yes, OEM/ODM is available
Q4: How many varieties and sizes of movements are available?
A4: Over a hundred different kinds
Q5: Is there a choice of lighting colors?
A5: May
Q6: Is the movement warranted?
A6: FreeWarranty
A1: Yes
Q2: How long do your movements last?
A2: More than two years
Q3: Can you do custom movements?
A3: Yes, OEM/ODM is available
Q4: How many varieties and sizes of movements are available?
A4: Over a hundred different kinds
Q5: Is there a choice of lighting colors?
A5: May
Q6: Is the movement warranted?
A6: FreeWarranty
Hot Tags: LCD Drilling LED Light-emitting Needle Movement, China, Manufacturer, Supplier, Factory, Customized, Wholesale
